How to Create Dynamic Charts with Ninja Charts

Once you install and activate Ninja Charts, this plugin is ready to create any type of chart you want! As a free WordPress chart plugin, Ninja Charts makes the process of creating online charts very easy.

Chart renderer in Ninja Charts:

• Charts Js
• Google Charts Chart options in Ninja Charts (Charts from both renderers):
• Line Chart
• Pie Chart
• Bar Chart
• Horizontal Bar
• Bubble Chart
• Doughnut Chart
• Scatter Chart
• Area Chart
• Combo Chart
• Radar Chart
• Polar Chart

Creating WordPress Charts with Ninja Charts

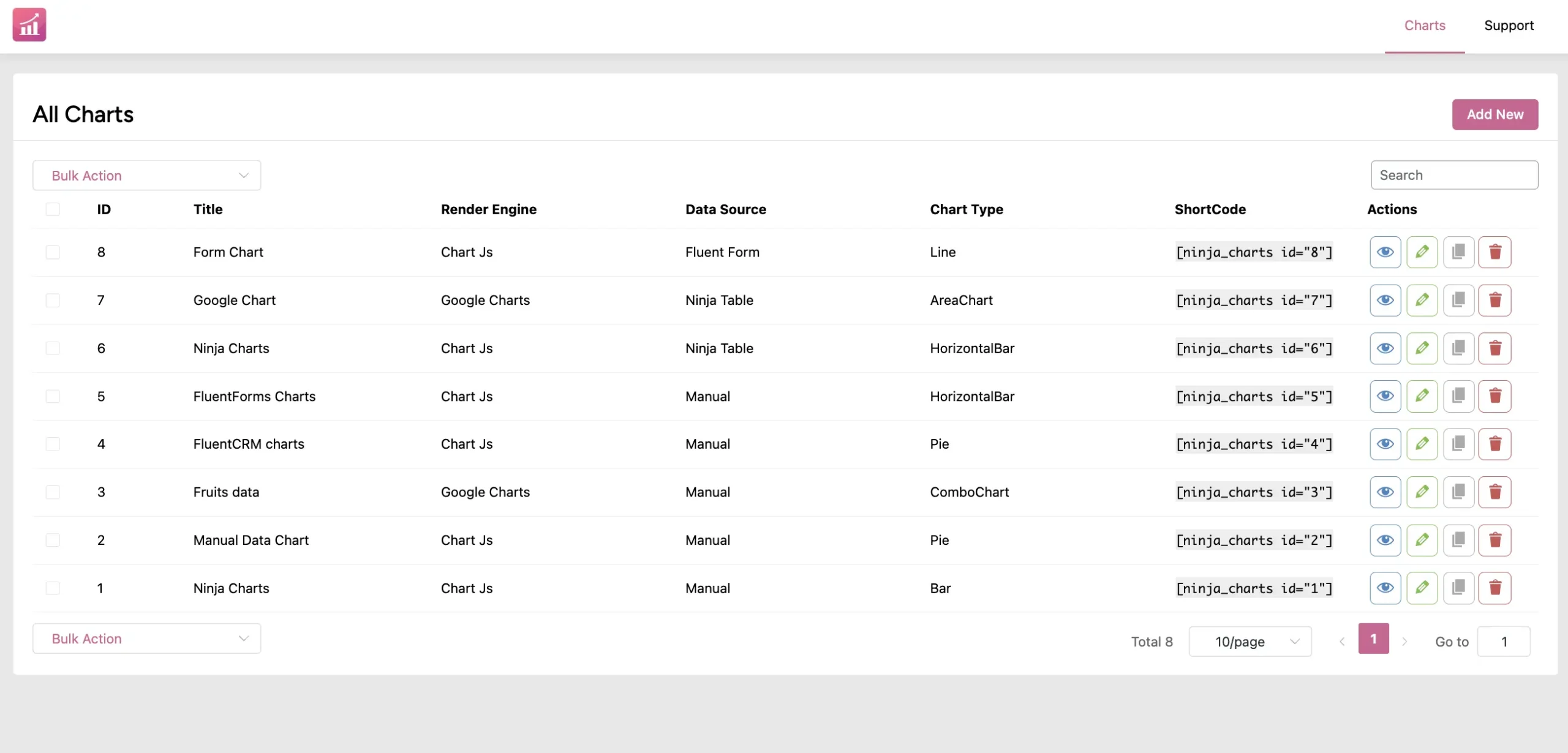

First of all, go to the Ninja Charts dashboard and click the “Add New” button.

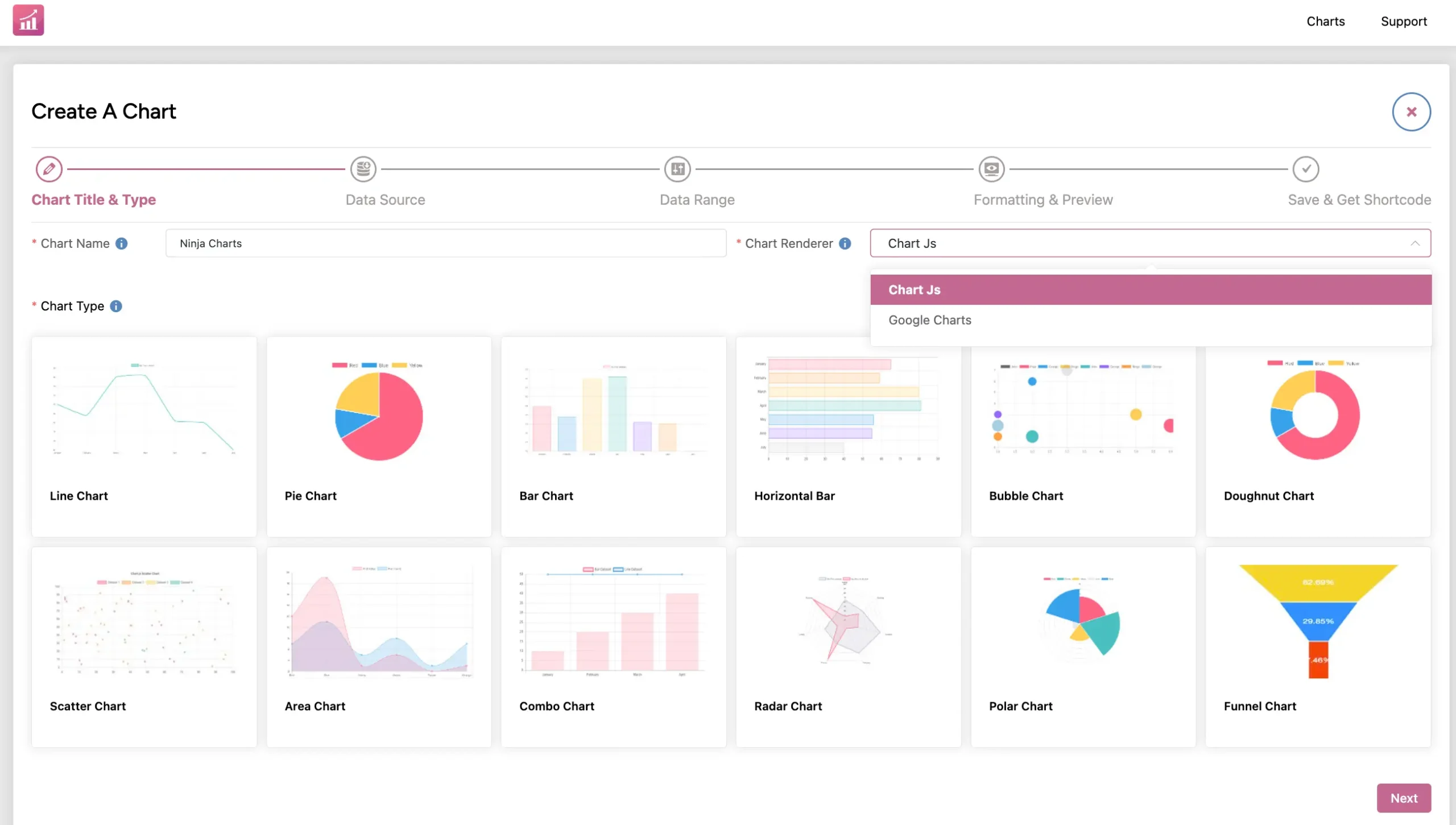

• Enter the chart name.

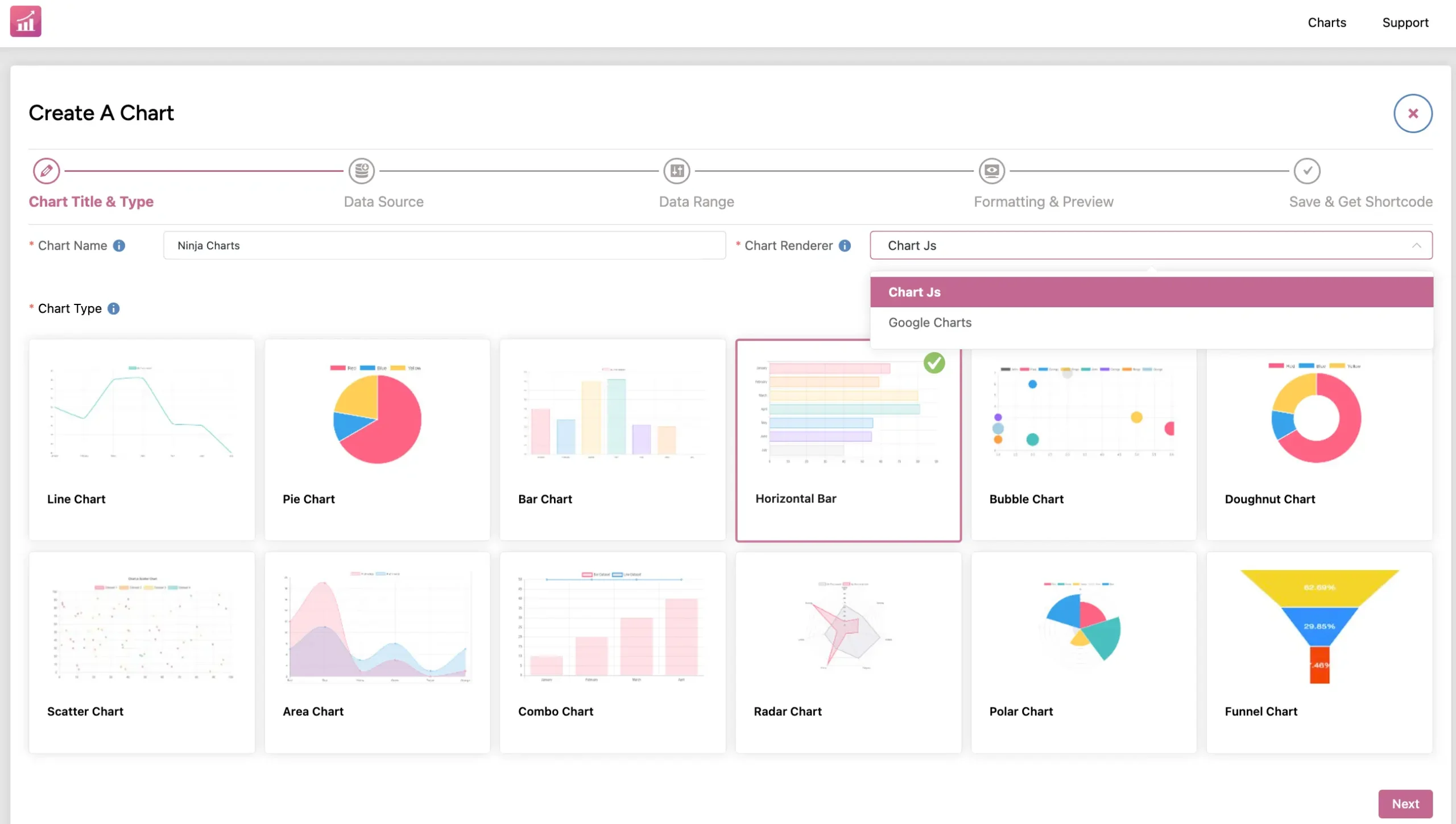

• Choose a Chart Renderer. Choose either Google Charts or Chart Js.
• After choosing Chart Js here, you’ll see multiple chart types. Let’s pick one.
• We’ve selected the Horizontal Bar chart for demonstration and clicked Next.

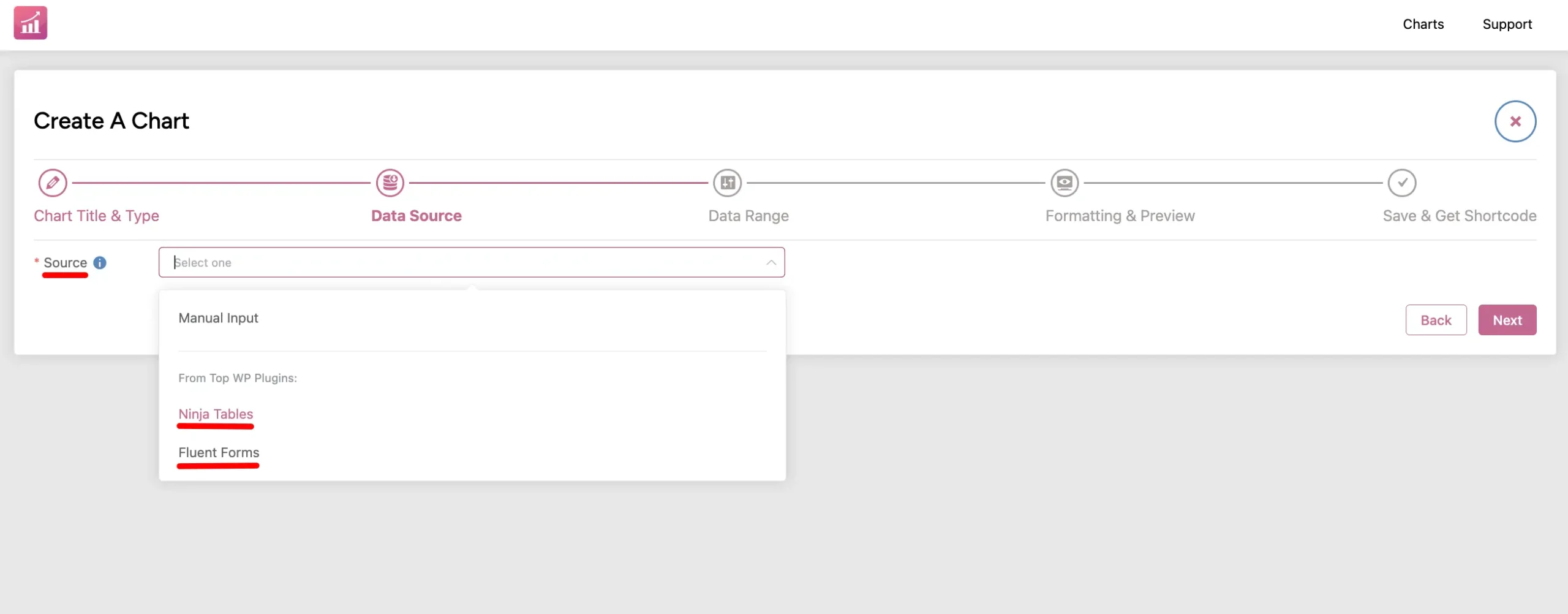

• After this, you have to select the Data Source from the Source option.
• Manual Input
• Ninja Tables
• Fluent Forms

Here, we’ve selected Ninja Tables as the data source as an example.

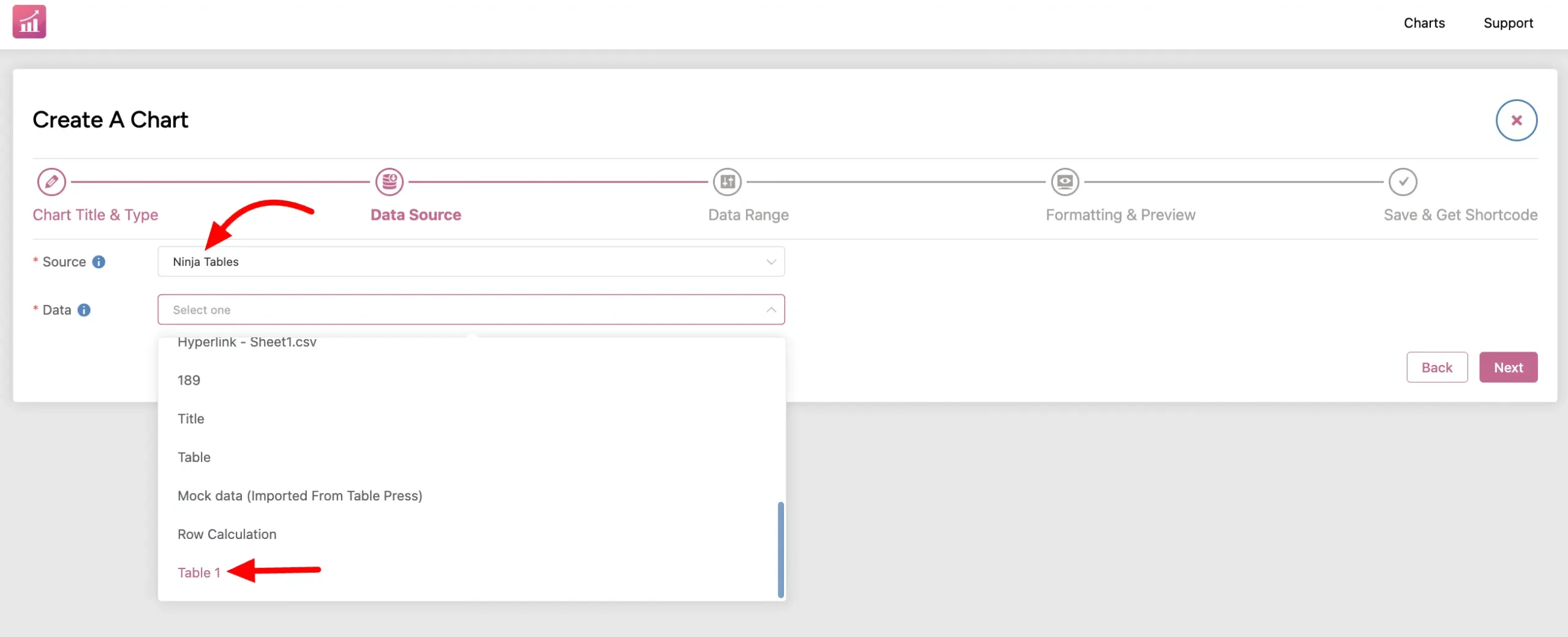

• Now, select the table you want to turn into a chart from the dropdown.

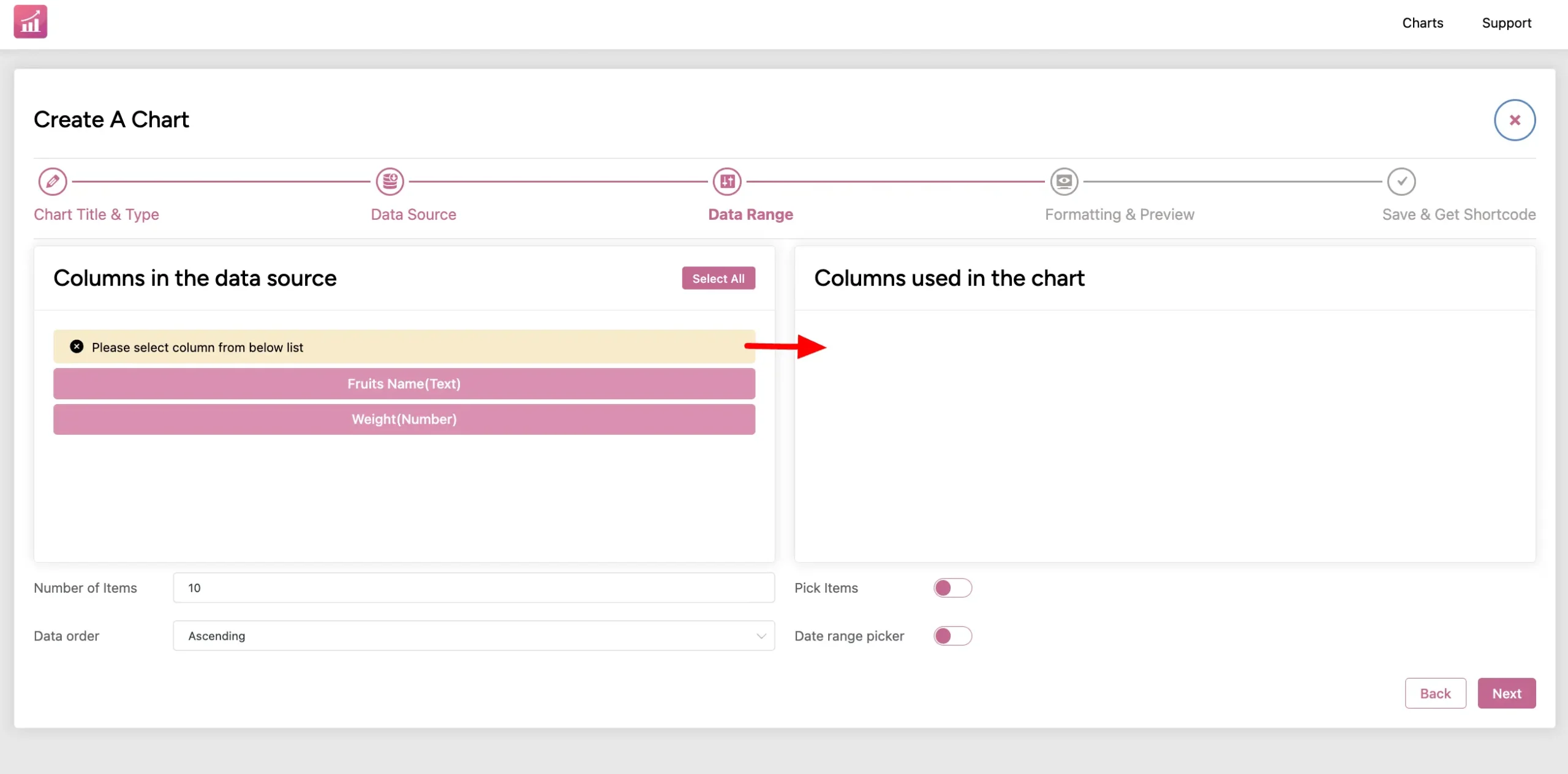

• Hit Next and now you’re in the Data Range tab where you can choose what table entries you want in your chart.

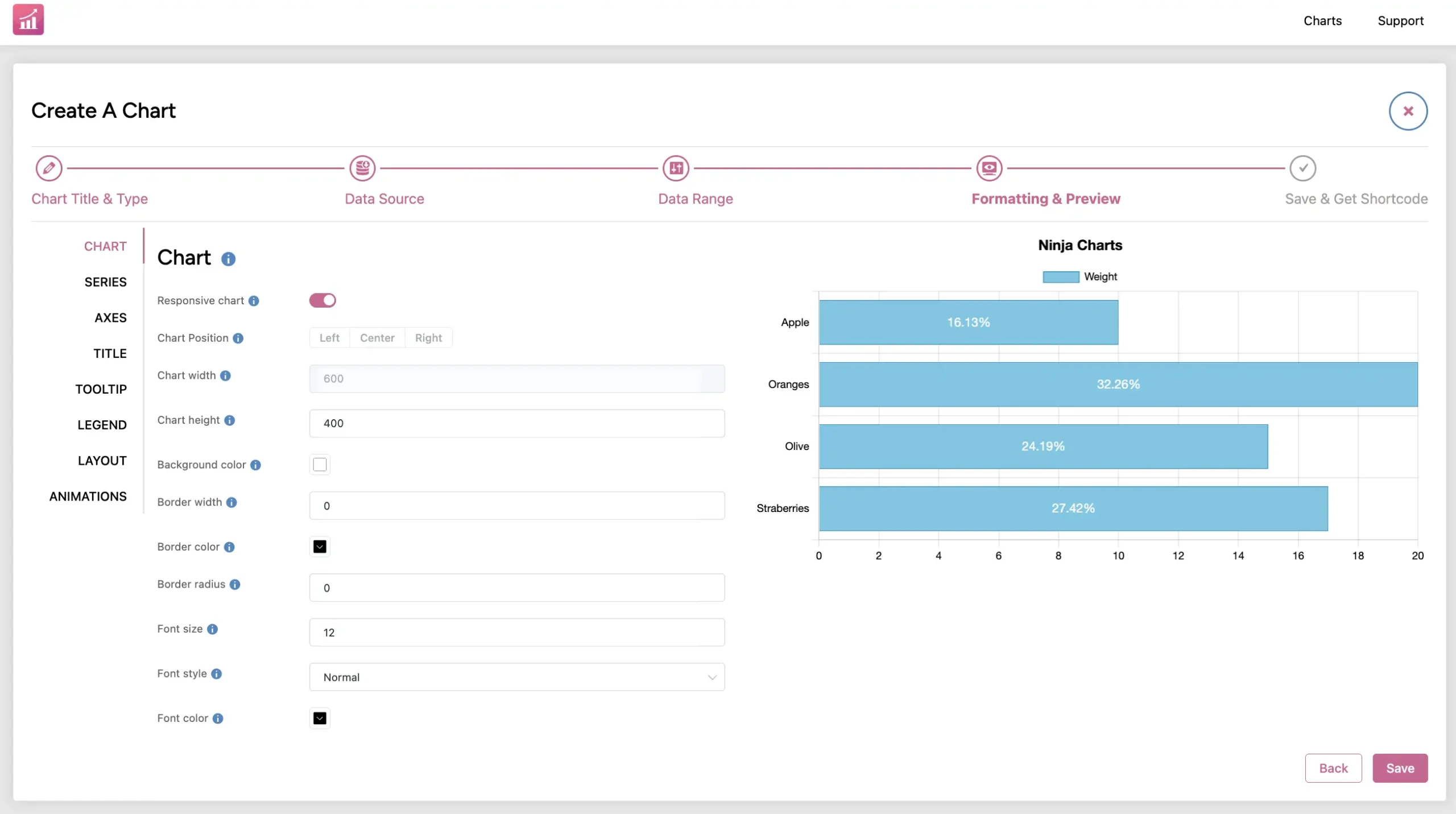

• You can customize it all you want in the Formatting & Preview tab. So, here's the Horizontal Bar chart by Ninja Charts made with the chosen data table in Ninja Tables in the Formatting & Preview tab.

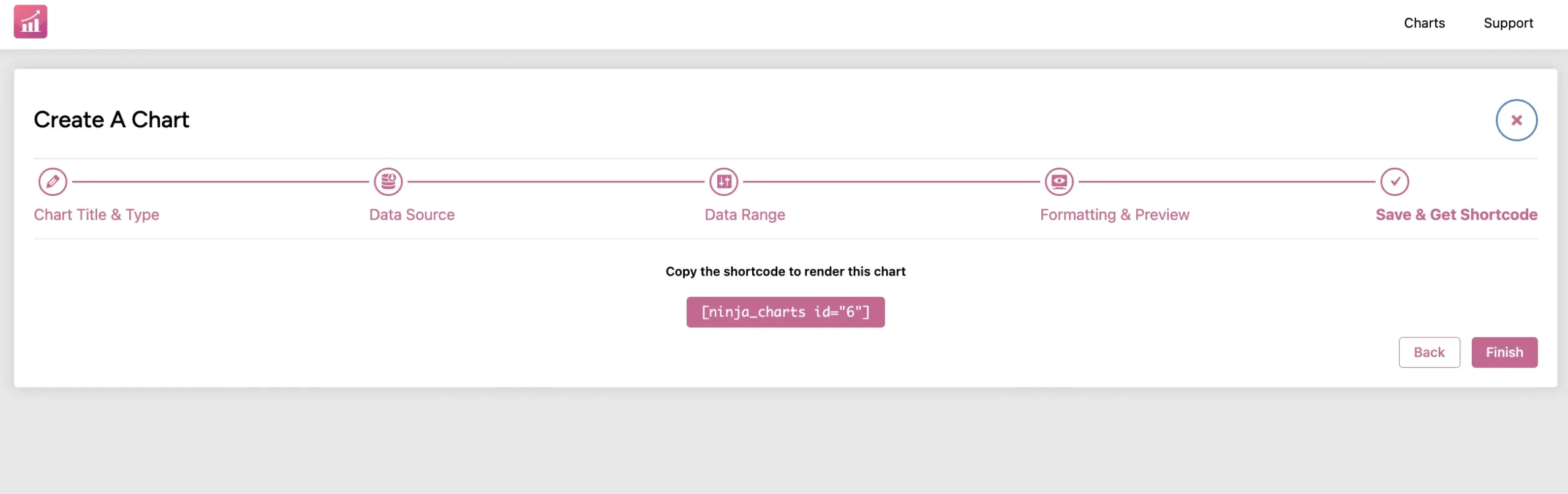

Now hit Save and get the shortcode from the next tab.

Copy the auto-generated shortcode and paste it anywhere on your website. This is how you can create different charts using Ninja Charts.
